Product Description

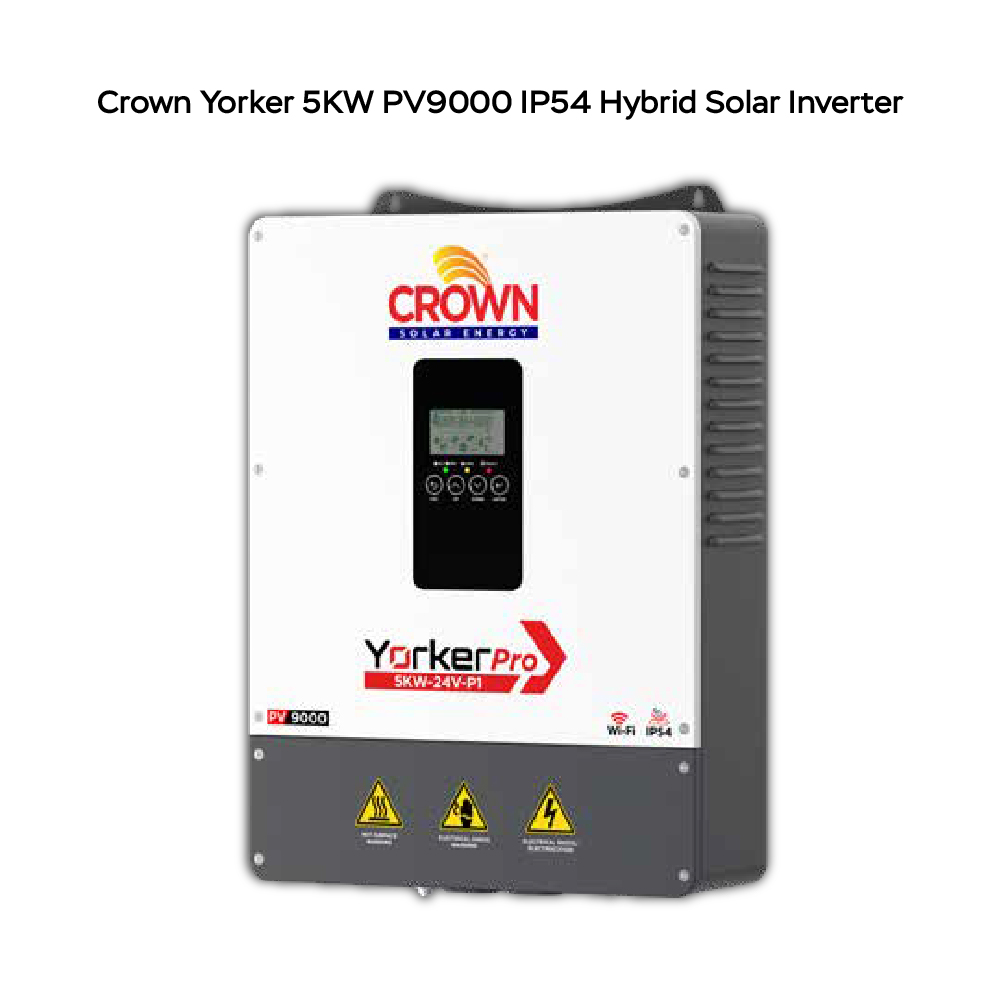

The Crown Yorker 5KW IP54 Hybrid Solar Inverter is a powerful and reliable solar energy solution designed for residential and commercial applications. Operating on a 24V battery system, this advanced hybrid inverter supports up to 9000W PV input (PV9000) with a high-efficiency MPPT solar charge controller that delivers up to 99.5% tracking efficiency. The inverter is designed with an IP54 protection rating, making it suitable for indoor and semi-outdoor installations where protection from dust and water splashes is essential.
The Crown Yorker 24V 5KW inverter features intelligent battery management and supports AGM, Flooded, Lithium, GEL, and Custom batteries, giving users complete flexibility according to their energy requirements. It also offers battery-less operation, allowing solar power to run connected loads directly during the day.
With a maximum 160A solar charging current, built-in WiFi monitoring, multiple communication ports (RS485, CAN & RS232), and pure sine wave output, the Crown Yorker 5KW PV9000 24V inverter provides stable, efficient, and uninterrupted power for homes, offices, shops, and small businesses.
Whether you’re searching for a Crown Yorker inverter 5KW, Crown Yorker Hybrid Inverter, Crown 5KW IP54 Inverter, or Crown Solar IP54 Inverter, this model offers exceptional performance, intelligent solar management, and long-term reliability.
Features
- 5KW Single Phase Hybrid Solar Inverter
- 24V Battery System
- Supports up to 9000W PV Input (PV9000)
- High-performance MPPT Technology with 99.5% efficiency
- IP54 Protection for enhanced durability
- Battery-less operation supported
- Supports AGM, GEL, Flooded, Lithium & Custom batteries
- Maximum Solar Charging Current 160A
- Pure Sine Wave Output
- Built-in WiFi Monitoring (Solar of Things App)
- RS485, CAN & RS232 Communication
- Supports bidirectional DC soft start
- Compatible with Crown Elektraboost batteries
- LCD Display for easy monitoring
- Wide MPPT Voltage Range
- Stable DSP-based intelligent control
- Suitable for Homes, Offices, Shops & Commercial Solar Systems
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Crown Solar Energy |
| Series | Yorker Pro |
| Model | CSE-Y(P)5K24VP1 |
| Product Type | Single Phase Hybrid Solar Inverter |
| Rated Output Power | 5KW (Battery + PV) |
| Battery Only Output | 4KW |
| Battery Voltage | 24V DC |
| Battery Voltage Range | 21V–30.5V |
| Battery Types | AGM, Flooded, GEL, Lithium, Custom |
| PV Maximum Input Power | 9000W |
| Maximum PV Voltage | 500V DC |
| MPPT Voltage Range | 60V–450V DC |
| Minimum PV Start Voltage | 80V |
| MPPT Efficiency | Up to 99.5% |
| Maximum Charging Current | 160A |
| AC Input Voltage | 220V / 230V AC |
| AC Input Frequency | 50/60Hz |
| Output Waveform | Pure Sine Wave |
| Output Voltage | 208/220/230/240V AC |
| Communication | RS485, CAN, RS232 |
| Monitoring | Built-in WiFi |
| Display | LCD |
| Protection Rating | IP54 |
| Operating Temperature | -10°C to 60°C |
| Humidity | 5–95% (Non-condensing) |
| Maximum Altitude | 4000m |
| Dimensions | 487.2 × 347.6 × 122.7 mm |
