Description
Product Description Of CoreTECH 1.6KW

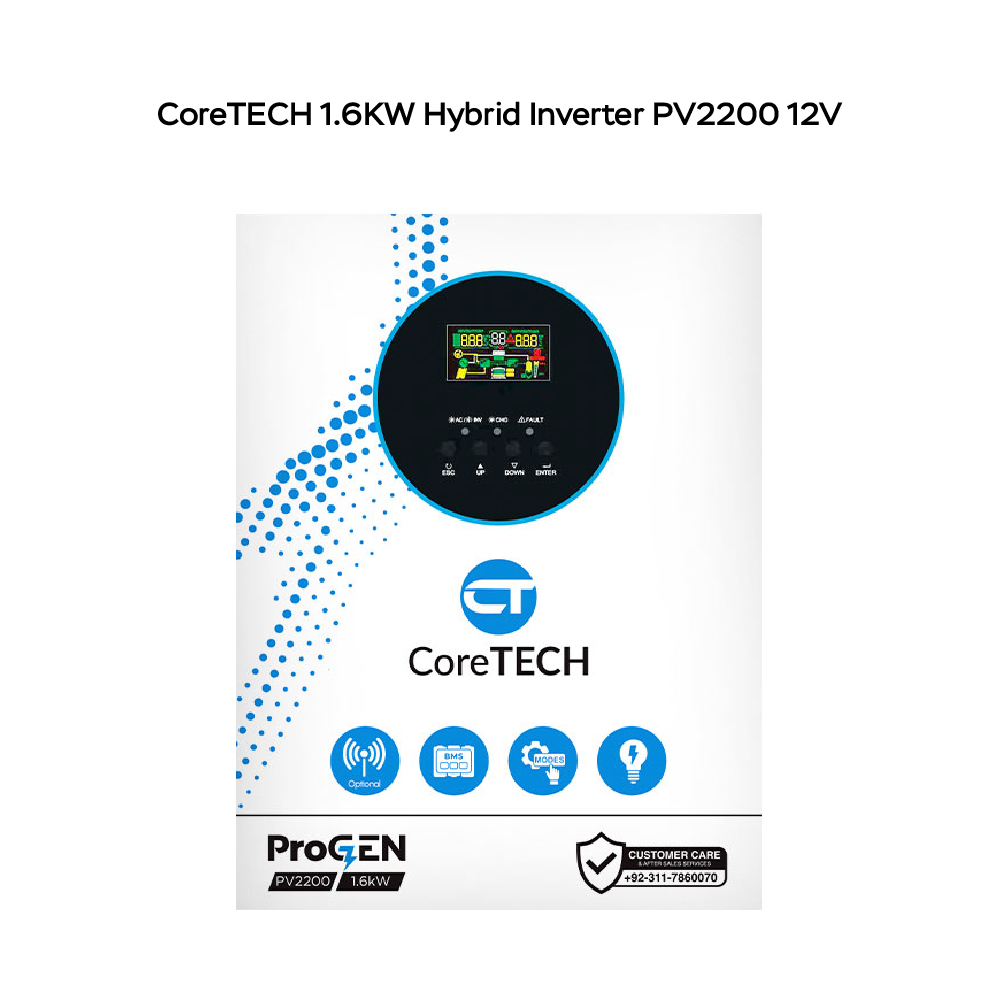

The CoreTECH 1.6KW Hybrid Inverter is a reliable and high-performance solar inverter designed for homes, shops, offices, and small backup power systems. The CoreTECH ProGen PV2200 supports up to 2200W solar PV input, making it an efficient solution for maximizing solar energy production while reducing electricity bills.
Powered by a 12V battery system, the CoreTECH ProGen 1.6KW PV2200 features an advanced MPPT solar charge controller with up to 100A charging current, ensuring maximum energy harvesting from solar panels. It delivers a pure sine wave output, making it safe for sensitive electronics such as LED TVs, computers, networking devices, refrigerators, fans, and other household appliances.
The CoreTECH 1.6KW PV2200 Hybrid Inverter automatically switches between utility power, solar power, and battery backup, providing uninterrupted electricity during load shedding. With adjustable charging voltages, dual operating modes (UPS & Appliance), LCD display, and optional WiFi monitoring, this inverter offers an excellent balance of performance, efficiency, and affordability.
If you’re looking for a dependable CoreTECH ProGen Hybrid Inverter with high solar capacity, fast charging, and stable output, the CoreTECH ProGen 1.6KW PV2200 is one of the best choices available.
Key Features Of CoreTECH 1.6KW
- 1600W Rated Output Power
- 2200W Maximum Solar PV Input
- 12V Battery System
- Advanced MPPT Solar Charge Controller
- 100A Maximum Solar Charging Current
- Pure Sine Wave Output
- Peak Power up to 3200VA
- Supports Utility, Solar & Battery Operation
- Automatic Transfer Between Power Sources
- UPS Mode (10ms Transfer Time)
- Appliance Mode (20ms Transfer Time)
- Adjustable Charging Voltage
- High Conversion Efficiency up to 94%
- LCD Display for Real-Time Monitoring
- Optional WiFi Monitoring Support
- Lithium Battery BMS Communication Support
- RS232 Communication Port
- Dry Contact Support
- Wide AC Input Voltage Range
- Ideal for Home & Office Backup
- Compact & Space Saving Design
- IP21 Protection
Technical Specifications Of CoreTECH 1.6KW
| Specification | Details |
|---|---|
| Brand | CoreTECH |
| Series | ProGen |
| Model | PV2200 |
| Rated Output Power | 1600W (1.6KW) |
| Peak Power | 3200VA |
| Battery Voltage | 12V DC |
| Inverter Type | Hybrid Solar Inverter |
| Waveform | Pure Sine Wave |
| Maximum PV Input Power | 2200W |
| MPPT Type | MPPT Solar Charge Controller |
| MPPT Voltage Range | 30V–500V DC |
| Best MPPT Operating Voltage | 300–400V DC |
| Maximum PV Voltage | 500V DC |
| Maximum Solar Charging Current | 100A |
| Maximum AC Charging Current | 60A |
| Maximum Charging Current | 100A |
| Rated AC Input Voltage | 220/230/240V AC |
| AC Input Voltage Range | 90–280V (APL Mode), 170–280V (UPS Mode) |
| Output Voltage | 220/230/240V ±5% |
| Frequency | 50/60Hz Auto |
| Transfer Time | 10ms UPS / 20ms Appliance |
| Peak Efficiency | 94% |
| Display | LCD Display |
| Communication | RS232 |
| Optional Interfaces | WiFi Card, Lithium BMS Card, Dry Contact |
| Parallel Operation | Not Supported |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| Humidity | 20%–95% Non-Condensing |
| Noise Level | ≤50dB |
| Protection Rating | IP21 |
