Description

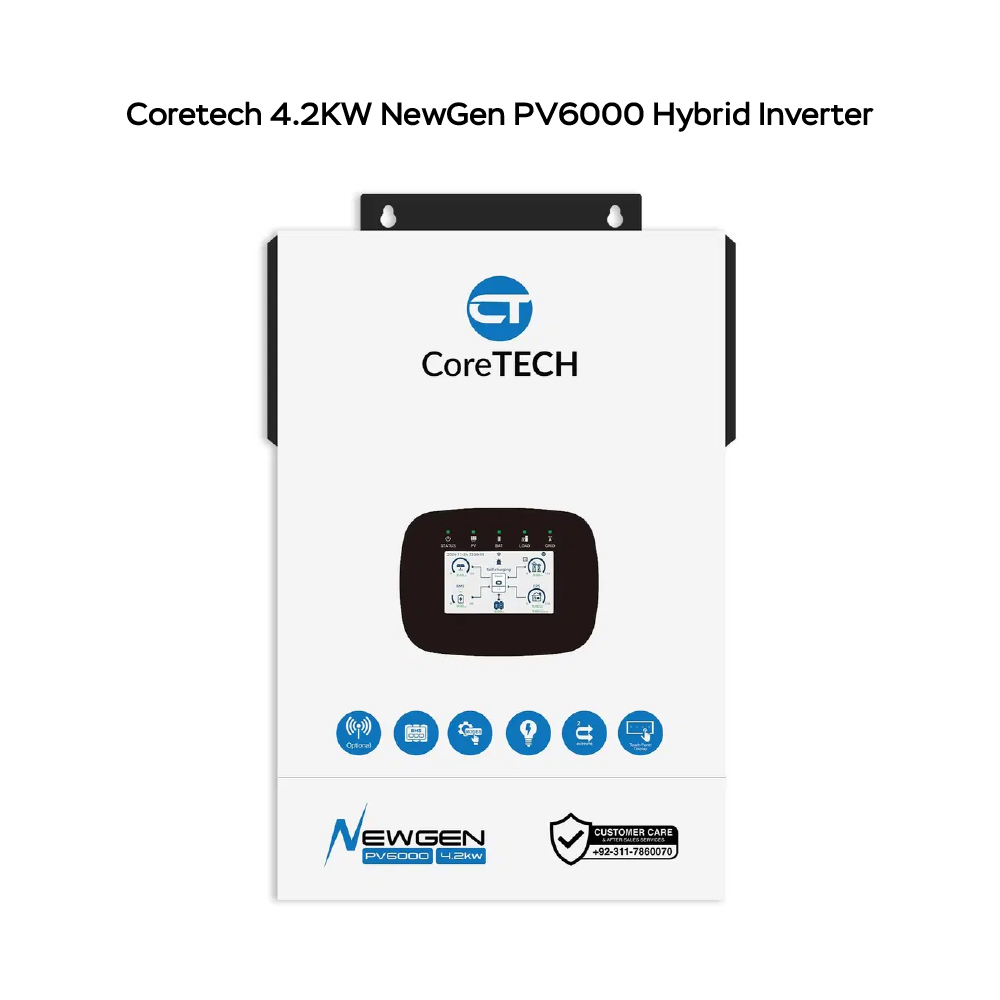

Description Of Coretech 4.2kW PV6000 Solar Inverter
The CoreTECH NewGen PV6000 4.2kW Hybrid Inverter is an advanced 24V single-phase hybrid inverter engineered to deliver efficient solar energy management, uninterrupted backup power, and intelligent battery charging. Whether you’re installing a residential solar system or upgrading your existing setup, the Coretech 4.2kW Hybrid Inverter provides high performance with smart energy optimization.
The CoreTECH NewGen 4.2kW PV6000 supports up to 6000W solar PV input, allowing you to maximize solar generation while reducing dependence on the utility grid. Equipped with a 120A MPPT solar charger, 120A AC charger, and 137A battery discharge current, it delivers exceptional charging efficiency for both Lithium-ion and Lead Acid batteries.
This Coretech NewGen Inverter features a pure sine wave output, ensuring stable and clean electricity for sensitive appliances including computers, LED TVs, networking equipment, refrigerators, and office electronics. With an ultra-fast 4ms transfer time, your critical loads continue running without noticeable interruption during power failures.
The CoreTECH NewGen PV6000 4.2KW Hybrid Inverter includes built-in WiFi connectivity through the HaiPower App, allowing real-time monitoring and remote management from anywhere. Its 4.3-inch touch screen display, smart dual AC outputs, generator compatibility, and support for parallel operation up to 9 units make it a flexible solution for growing energy demands.
If you’re looking for the Coretech NewGen 4.2kW PV6000, Coretech 4.2KW PV6000 NewGen, CoreTECH NewGen, or Coretech PV6000 Hybrid Inverter, this model offers an excellent combination of efficiency, reliability, and intelligent solar management.
Key Features Of Coretech 4.2KW
- 4.2kW Single Phase Hybrid Solar Inverter
- 24V Battery System
- Supports up to 6000W PV Input
- Pure Sine Wave Output
- 120A MPPT Solar Charging Current
- 120A AC Charging Current
- 137A Maximum Battery Discharge Current
- Built-in WiFi Monitoring via HaiPower App
- 4.3-inch Touch Screen Display
- UPS Transfer Time ≤4ms
- Compatible with Lithium-ion & Lead Acid Batteries
- Lithium Battery Activation Support
- CAN & RS485 Battery Communication
- Generator Compatible
- Dual AC Output with Smart Load Management
- Supports Parallel Connection up to 9 Units
- Peak Output up to 8400VA
- Peak Efficiency up to 94%
- MPPT Efficiency ≥99.9%
- AC & DC Surge Protection
- AC Short Circuit Protection
- Ideal for Residential & Commercial Solar Systems
Technical Specifications Of Coretech 4.2KW
| Specification | Details |
|---|---|
| Brand | CoreTECH |
| Series | NewGen |
| Model | FSD-4.2K1P-BL-G3 |
| Inverter Capacity | 4.2kW |
| PV Model | PV6000 |
| Battery Voltage | 24V |
| Battery Type | Lithium-ion / Lead Acid |
| Maximum PV Input Power | 6000W |
| Maximum PV Voltage | 500V |
| Start-up Voltage | 90V |
| MPPT Voltage Range | 60V–450V |
| Number of MPPT | 1 |
| Max PV Input Current | 18A |
| Max Short Circuit Current | 23A |
| Solar Charging Current | 120A |
| AC Charging Current | 120A |
| Max Charge Current | 120A |
| Max Battery Discharge | 137A |
| Output Power | 4200W |
| Peak Power | 8400VA |
| Output Voltage | 230V |
| Frequency | 50/60Hz |
| Waveform | Pure Sine Wave |
| Transfer Time | ≤4ms |
| Peak Efficiency | 94% |
| MPPT Efficiency | ≥99.9% |
| Parallel Support | Up to 9 Units |
| Communication | WiFi, USB, CAN, RS485 |
| Display | 4.3″ Touch LCD |
| Cooling | Fan Cooling |
| Operating Temperature | -10°C to +60°C |
| Protection | AC Surge, DC Surge, AC Short Circuit |
| Noise | ≤50dB |
| Weight | 10.6kg |
| Dimensions | 333 × 505 × 120 mm |
