Product Description

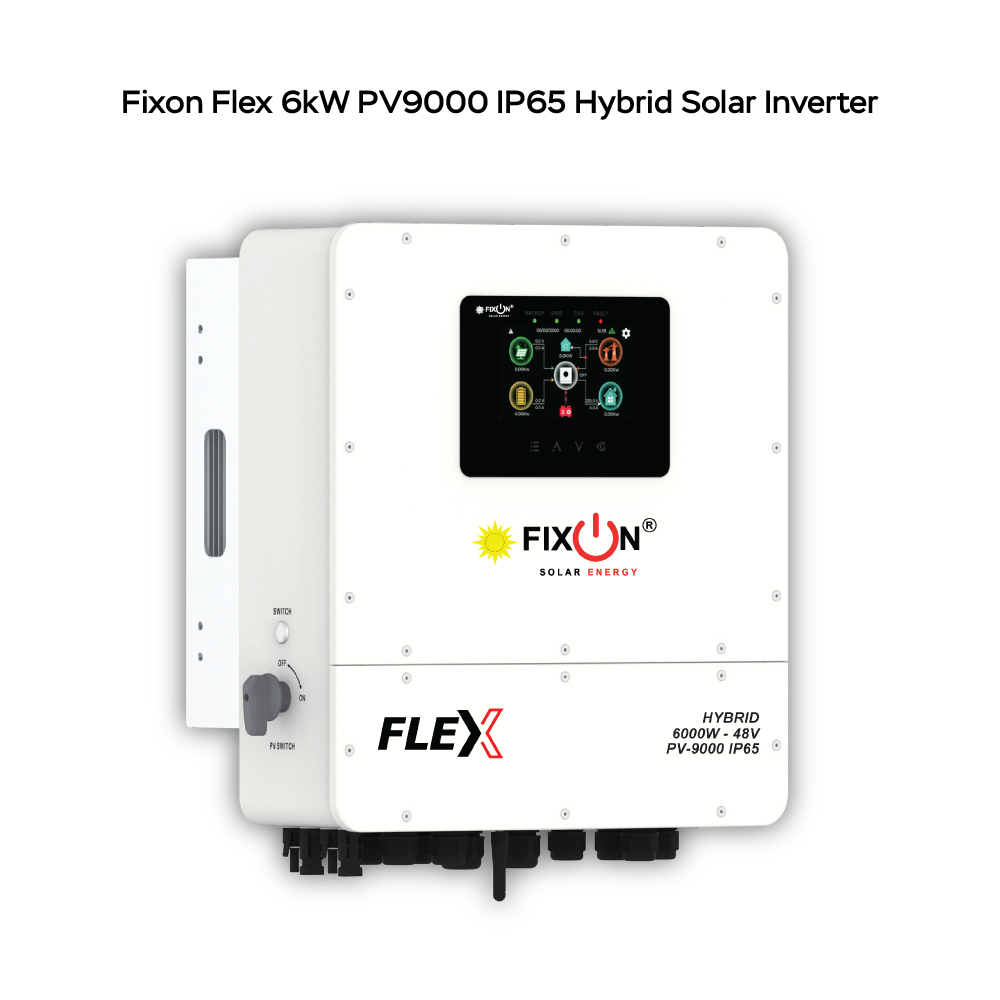

The Fixon Flex 6kW PV9000 IP65 Hybrid Solar Inverter is a high-performance 48V hybrid inverter designed for residential and commercial solar systems. Equipped with 9000W PV input, dual MPPT technology, IP65 waterproof protection, and 97% conversion efficiency, this inverter delivers maximum solar energy utilization with reliable performance in all weather conditions.
The Fixon Flex Series is built for users looking for a durable outdoor solution with intelligent energy management. The Fixon Flex PV9000 supports grid-tied, off-grid, and hybrid operation, allowing seamless switching between solar panels, batteries, utility grid, and generators.
Powered by Dual MPPT (2×18A), the Fixon PV9000 extracts maximum energy even when solar panels are installed in different directions. It also supports parallel operation up to 6 units for single-phase installations, making future expansion simple and cost-effective.
The Fixon Flex 6kW IP65 Inverter comes with built-in WiFi, RS485, CAN communication, Dry Contact, Touch Screen Display, Current Transformer (CT) support, and 135A solar charging current, making it an ideal choice for homes, offices, shops, farms, and industrial applications.
If you’re looking for a powerful Fixon 6kW PV9000, Fixon IP65 Inverter, or Fixon 6kW Hybrid Solar Inverter, this model offers outstanding performance, advanced protection, and long-term reliability.
Features
- 6kW Pure Sine Wave Hybrid Solar Inverter
- Massive 9000W PV Solar Input
- 48V Battery System
- IP65 Waterproof & Dustproof Outdoor Design
- Dual MPPT Solar Charger (2 MPPT)
- Maximum Solar Charging Current: 135A
- High Conversion Efficiency up to 97%
- Pure Sine Wave Output
- Grid-Tied, Off-Grid & Hybrid Working Modes
- Built-in WiFi Monitoring
- Touch Screen LCD Display
- CT (Current Transformer) Support
- Parallel Operation up to 6 Units
- RS485, CAN & Dry Contact Communication
- Supports Lithium & Lead Acid Batteries
- Automatic Utility & Solar Switching
- Smart Battery Charging Management
- Easy Installation & Maintenance
- Ideal for Residential & Commercial Solar Systems
Technical Specifications
| Specification | Details |
|---|---|
| Model | FXN-6KW-FLX6 |
| Product Series | Fixon Flex Series |
| Rated Output Power | 6000W |
| Maximum PV Input Power | 9000W |
| Battery Voltage | 48V DC |
| Maximum Solar Charging Current | 135A |
| MPPT Voltage Range | 50V–450V DC |
| Start-up Voltage | 117V DC |
| Maximum PV Voltage | 520V DC |
| MPPT | Dual MPPT (2×18A) |
| Output Voltage | 220/230/240VAC |
| Output Waveform | Pure Sine Wave |
| Output Current | 26.1A |
| Conversion Efficiency | Up to 97% |
| Battery Mode Efficiency | 93% |
| Frequency | 50Hz / 60Hz Auto |
| Parallel Operation | Up to 6 Units (Single Phase) |
| Communication | WiFi, RS485, CAN, Dry Contact |
| Display | Touch Screen LCD |
| Protection Rating | IP65 |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| Humidity | 5%–95% Non-Condensing |
| Dimensions | 521 × 470 × 236 mm |
| Weight | 23.5 kg |
