Description
Product Description

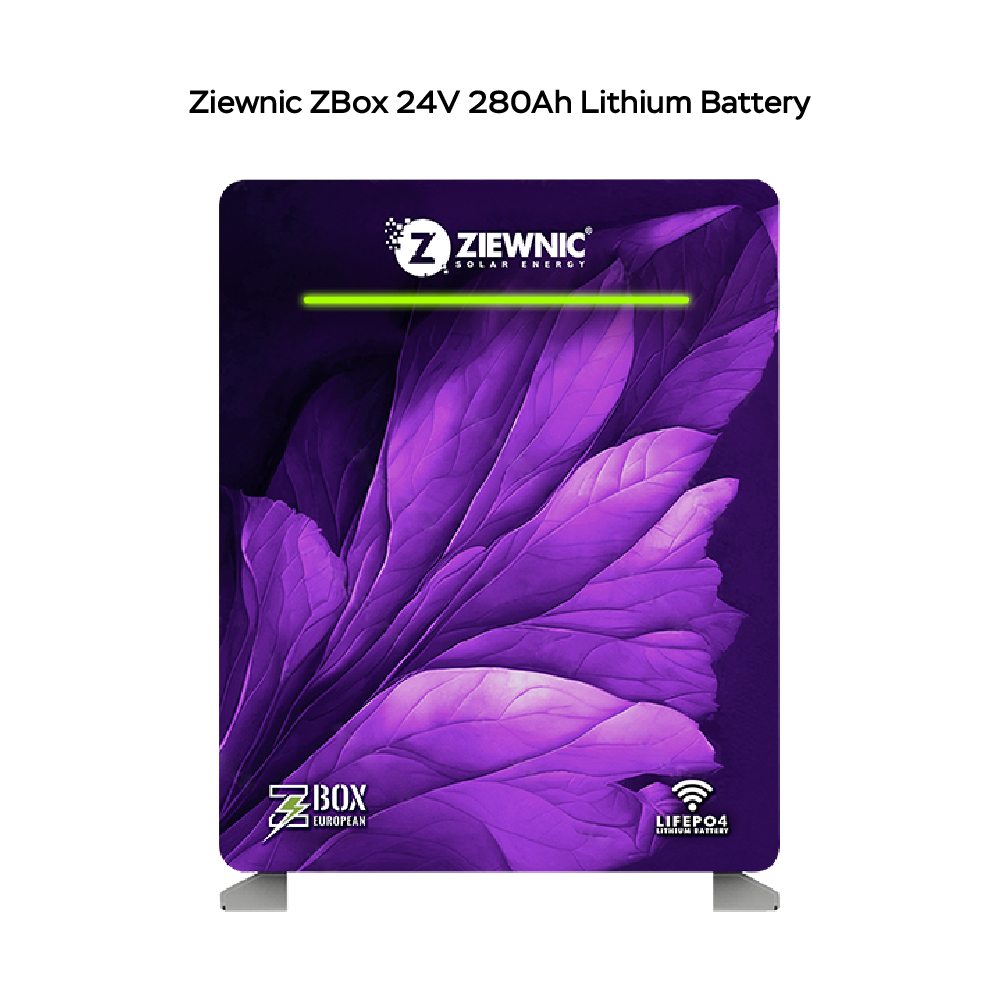

The Ziewnic ZBox 24V 280Ah LiFePO4 Lithium Battery is a premium wall-mounted energy storage solution designed for residential, commercial, and industrial solar systems in Pakistan. Built with high-grade prismatic LiFePO4 cells and an American-chip Pace Active BMS, this battery delivers outstanding performance, safety, and long service life.
With a 25.6V nominal voltage, 280Ah capacity, and 7168Wh (7.168kWh) energy storage, the Ziewnic ZBox 24V 280Ah provides reliable backup power for hybrid, off-grid, UPS, and solar applications. Whether you’re searching for a 24V lithium battery, 7kW lithium battery, 280Ah battery, or a dependable Solar Battery Pakistan, this model offers exceptional value and performance.
Its intelligent BMS supports simultaneous communication with multiple inverter brands and offers complete protection against overcharge, over-discharge, overcurrent, short circuit, and temperature fluctuations. The battery supports up to 16 units in parallel, making it an ideal solution for expanding energy storage requirements.
The Ziewnic ZBOX battery also features optional Wi-Fi remote monitoring via the Ziewnic App (Android & iOS), optional LCD display, RGB status indicator, and communication ports including CAN, RS485, and RS232 for seamless integration with compatible solar inverters.
Compatible with approximately 95% of inverter brands available in Pakistan, including Solis, Growatt, Deye, GoodWe, Inverex, Voltronic, and many others, the Ziewnic ZBox 25.6V 280Ah is a future-ready lithium battery built for long-term reliability.
Features
- 25.6V 280Ah (7168Wh / 7.168kWh) LiFePO4 Lithium Battery
- Premium Grade Prismatic LiFePO4 Cells
- American-Chip Pace Active BMS
- 8000+ Charge/Discharge Cycles (80% DoD)
- 200A Continuous Charge Current
- 200A Continuous Discharge Current
- Up to 280A Charge/Discharge Capability (as highlighted in product brochure)
- Supports up to 16 Batteries in Parallel
- Built-in Intelligent Battery Management System
- RGB Status Indicator
- Optional Wi-Fi Remote Monitoring
- Ziewnic Mobile App for Android & iOS
- Optional CAN / RS485 / RS232 Communication
- Compatible with 95% of Solar Inverters
- Wall Mounted & Floor Standing Installation
- Compact & Lightweight Design
- 1000A Cold Start Impulse (Brochure Feature)
- Ultra Low Standby Power Consumption
- Automatic 30-Day Safety Cut-Off
- Environment Friendly LiFePO4 Technology
- Better Performance than Tubular Batteries
- UN38.3, MSDS Certified
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Ziewnic |
| Model | Z-BOX European 280Ah-25.6V |
| Battery Type | LiFePO4 Lithium |
| Nominal Voltage | 25.6V |
| Capacity | 280Ah |
| Energy | 7168Wh (7.168kWh) |
| Charge Voltage | 28.0V |
| Operating Voltage | 22V ~ 27V |
| Max Continuous Charge Current | 200A |
| Max Continuous Discharge Current | 200A |
| Parallel Support | Up to 16 Batteries |
| Battery Cells | Premium Grade Prismatic Cells |
| Cycle Life | 8000+ Cycles (80% DoD) |
| BMS | Pace Active Smart BMS |
| Communication | CAN, RS485, RS232 (Optional) |
| Wi-Fi | Optional |
| Mobile App | Android & iOS |
| Protection | Over Charge, Over Discharge, Over Current, Short Circuit, Over Temperature |
| Storage Temperature | 0°C ~ 30°C |
| Charging Temperature | 0°C ~ 65°C |
| Discharging Temperature | -20°C ~ 65°C |
| IP Rating | IP21 |
| Dimensions | 490 × 610 × 150 mm |
| Weight | 50 Kg |
| Safety Certifications | UN38.3, MSDS |
| Installation | Wall Mounted / Floor Standing |
