Description
Product Description

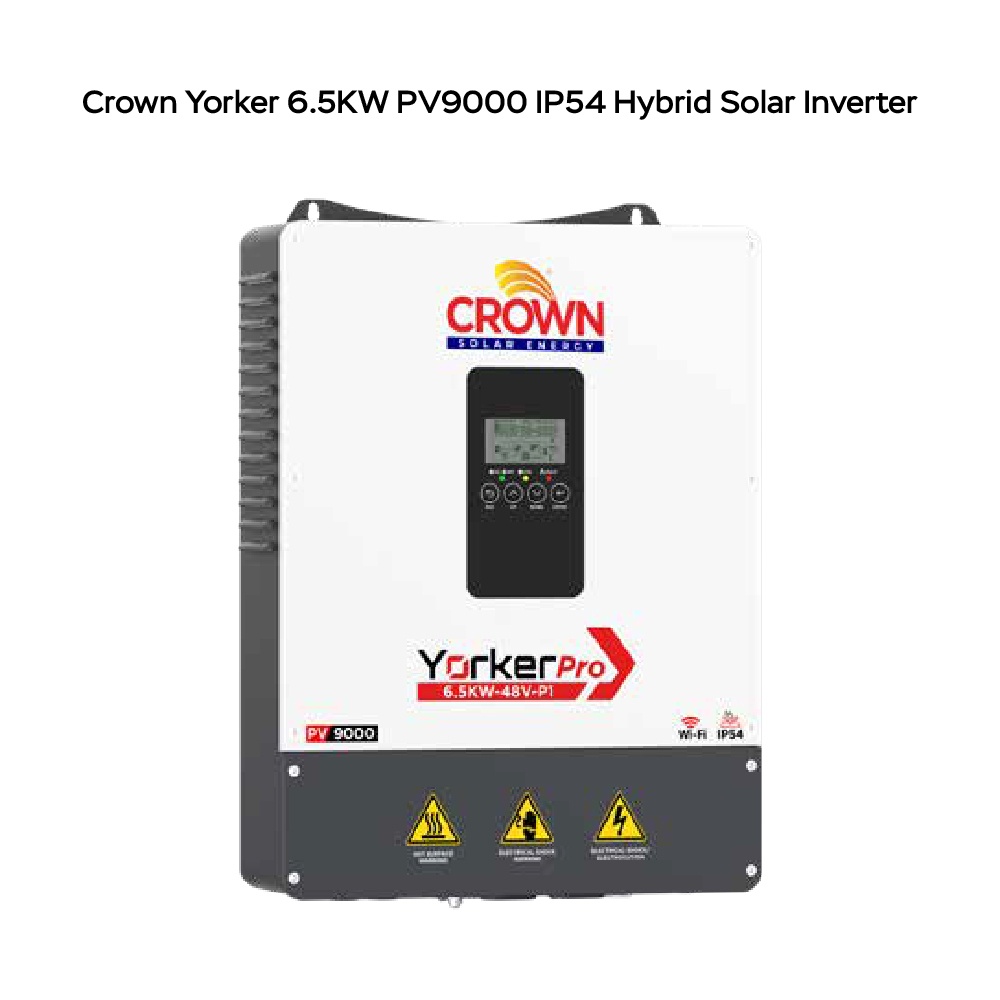

The Crown Yorker 6.5KW IP54 Hybrid Solar Inverter (Rated Output 6.5KW) is an advanced solar power solution engineered for residential and commercial applications. Built on a 48V battery platform, this inverter supports up to 9000W PV input (PV9000) and utilizes an intelligent MPPT solar charge controller with an impressive 99.5% tracking efficiency, ensuring maximum energy production from your solar panels.
Designed with an IP54 protection rating, the Crown Yorker 6.5KW IP54 inverter is protected against dust and water splashes, making it ideal for both indoor and semi-outdoor installations. The inverter also supports battery-less operation, allowing users to run loads directly from solar energy during daylight hours without requiring a battery bank.
The Crown Yorker 48V 6.5KW inverter is compatible with Lithium, AGM, GEL, Flooded Lead Acid, and Custom batteries, making it suitable for a wide range of energy storage solutions. Equipped with a 130A MPPT charging controller, LCD display, built-in WiFi monitoring, and communication ports including RS485, CAN, and RS232, it provides intelligent energy management and remote system monitoring.
Whether you’re looking for a Crown Yorker inverter 6.5KW, Crown Yorker Hybrid Inverter, Crown 6.5KW IP54 Solar Inverter, or a Crown Solar IP54 Inverter, this model delivers reliable performance, high conversion efficiency, and dependable backup power for modern solar systems.
Features
- 6.5KW Single Phase Hybrid Solar Inverter
- 48V Battery System
- Supports 9000W PV Input (PV9000)
- High-efficiency MPPT Technology (Up to 99.5%)
- IP54 Dust & Water Splash Protection
- Battery-less Operation Supported
- 130A MPPT Solar Charge Controller
- Compatible with Lithium, AGM, GEL & Lead Acid Batteries
- Pure Sine Wave Output
- Built-in WiFi Monitoring (Solar of Things App)
- LCD Display for Real-Time Monitoring
- RS485, CAN & RS232 Communication
- Supports Crown Elektraboost Batteries
- Intelligent DSP Control Technology
- Wide MPPT Voltage Range (60V–450V)
- Maximum PV Voltage: 500V
- Stable & Reliable Performance for Residential and Commercial Solar Systems
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Crown Solar Energy |
| Series | Yorker Pro |
| Model | CSE-Y(P)6.5K48VP1 |
| Product Type | Single Phase Hybrid Solar Inverter |
| Rated Output Power | 6.5KW (Battery + PV) |
| Battery Only Output | 6KW |
| Battery Voltage | 48V DC |
| Battery Voltage Range | 42V–61V |
| Supported Battery Types | AGM, Flooded, GEL, Lithium, Custom |
| PV Maximum Input Power | 9000W |
| Maximum PV Voltage | 500V DC |
| MPPT Voltage Range | 60V–450V DC |
| Minimum PV Start Voltage | 80V |
| MPPT Efficiency | Up to 99.5% |
| Maximum Charging Current | 130A |
| PV Charging Method | MPPT |
| AC Input Voltage | 220V / 230V AC |
| AC Output Voltage | 208V / 220V / 230V / 240V AC |
| Output Waveform | Pure Sine Wave |
| Frequency | 50 / 60Hz |
| Communication | RS485, CAN, RS232 |
| Monitoring | Built-in WiFi |
| Display | LCD |
| Protection Rating | IP54 |
| Operating Temperature | -10°C to 60°C |
| Humidity | 5%–95% Non-condensing |
| Maximum Operating Altitude | 4000m |
| Dimensions | 487.2 × 347.6 × 122.7 mm |
