Description
Product Description

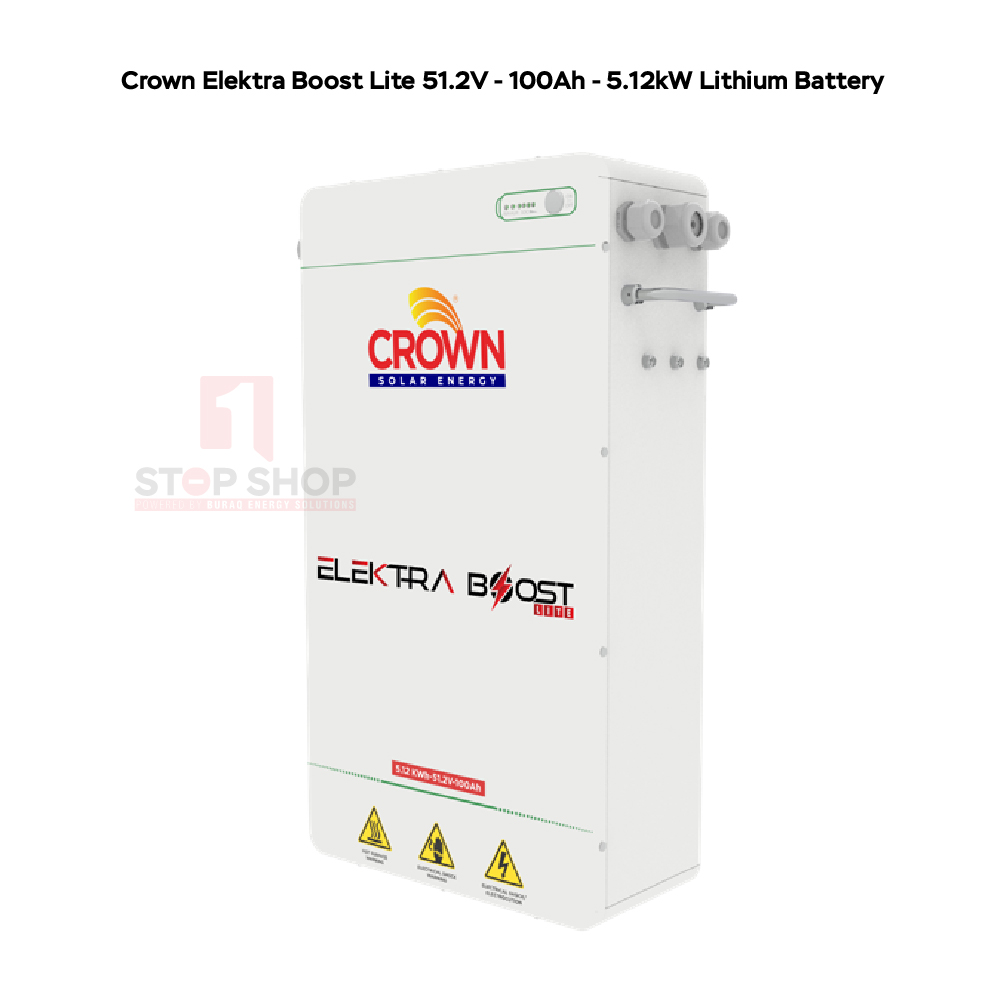

Crown Elektra Boost Lite is a high-performance 51.2V 100Ah Lithium Battery designed for solar energy storage, hybrid inverter systems, and reliable backup power applications. With a 5.12kWh rated energy capacity and 4.6kWh usable energy, this battery provides dependable energy storage for residential and commercial solar systems.
The Crown Elektra Boost Lite uses advanced LFP (LiFePO4) battery cells in a 16S1P configuration, providing a combination of safety, efficiency, and long-term reliability. With a rated capacity of 100Ah and a nominal voltage of 51.2V, it is an ideal 100Ah Solar Battery for modern energy storage systems.
This Crown 51.2V 100Ah Lithium Battery supports a recommended charge/discharge current of 50A. It can handle up to 100A maximum discharge current and 70A maximum charging current, providing strong energy delivery and flexible charging performance.
Built for long-term operation, the Crown Elektra Boost Lite offers a cycle life of more than 6,000 cycles at 25°C with a recommended depth of discharge (DOD) of 90%. This makes it a suitable Backup Power Battery for users looking for dependable energy storage over an extended period.
The battery is designed for excellent system compatibility and can work with single-phase, three-phase hybrid, and retrofit inverter systems. Communication interfaces including RS485, RS232, and CAN allow integration with compatible inverter and energy management systems.
As a Crown 48V lithium battery, the Elektra Boost Lite is commonly positioned within the 48V-class energy storage category, while its actual nominal battery voltage is 51.2V. Its operating voltage range is 40V–57.6V, with a recommended voltage range of 44.8V–56.8V.
The Crown Elektra Boost Lite also offers flexible installation with wall-mounted or floor-stand mounting options. Natural convection cooling, IP21 protection, and indoor installation make it suitable for properly protected residential and commercial energy storage environments.
For customers searching for Crown battery, Crown Elektra battery, Crown Elektra Boost, Crown Elektra Boost 48V, or Crown Elektra Boost Lite 51.2V 100Ah Lithium Battery, this model provides a practical combination of energy capacity, LiFePO4 technology, long cycle life, and inverter compatibility.
Whether you need a Solar Storage Battery, Solar System Battery, or reliable LiFePO4 Battery Pakistan solution, Crown Elektra Boost Lite is designed to provide stable and efficient energy storage for modern solar power systems.
Features
- 5.12kWh rated energy capacity
- 4.6kWh usable energy
- 100Ah rated battery capacity
- 51.2V nominal voltage
- LFP / LiFePO4 battery technology
- 16S1P cell configuration
- More than 6,000 charge-discharge cycles
- 90% recommended DOD
- 50A recommended charge/discharge current
- 100A maximum discharge current
- 70A maximum charging current
- Compatible with single-phase hybrid inverter systems
- Compatible with three-phase hybrid inverter systems
- Supports retrofit inverter systems
- RS485, RS232 and CAN communication
- Wall-mounted or floor-stand installation
- Natural convection cooling
- IP21 ingress protection
- Indoor installation
- CE, IEC62619 and UN38.3 certified
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Crown Elektra Boost Lite |
| Battery Model | CSE-ESS(L)-51.2V100AH |
| Battery Type | LFP / LiFePO4 |
| Cell Configuration | 16S1P |
| Rated Energy | 5.12kWh |
| Usable Energy | 4.6kWh |
| Battery Module Energy | 5.12kWh |
| Rated Capacity | 100Ah |
| Nominal Voltage | 51.2V |
| Operating Voltage Range | 40–57.6V |
| Recommended Voltage Range | 44.8–56.8V |
| Recommended Charge/Discharge Current | 50A |
| Maximum Discharge Current | 100A |
| Maximum Charging Current | 70A |
| Cycle Life | >6,000 cycles at 25°C |
| Recommended DOD | 90% |
| Communication | RS485 / RS232 / CAN |
| Operating Temperature – Charging | 0°C to +55°C |
| Operating Temperature – Discharging | -20°C to +55°C |
| Recommended Temperature | 15°C to 30°C |
| Relative Humidity | 5%–95% |
| Cooling | Natural Convection |
| Protection Rating | IP21 |
| Environment | Indoor |
| Weight | 45kg |
| Dimensions | 454 × 585 × 135mm |
| Maximum Operating Altitude | 2,000m |
| Mounting Method | Wall-Mounted / Floor Stand |
| Certifications | CE / IEC62619 / UN38.3 |
